High Precision Resistor (MFD Series)

+
  • undefined

High Precision Resistor (MFD Series)

Highprecisionmetalfilmleadedresistor,verytighttoleranceandextremelylowTCRforprecisionhighlevelequipmentandmeasurementetc.Features· Verytighttolerancedownto±0.02%.· ExtremelylowTCRdownto±5PPM/℃.· Highp

category:

LEADED RESISTOR

Model :

VIKING36

  • Product description
  • Product parameters
  • Product parameters
    • Commodity name: High Precision Resistor (MFD Series)
    • Commodity ID: VIKING36

    Highprecisionmetalfilmleadedresistor,verytighttoleranceandextremelylowTCRforprecisionhighlevelequipmentandmeasurementetc.Features· Verytighttolerancedownto±0.02%.· ExtremelylowTCRdownto±5PPM/℃.· Highp

    High precision metal film leaded resistor , very tight tolerance and extremely low TCR for precision high level equipment and measurement etc.

    Features

    · Very tight tolerance down to ±0.02%.
    · Extremely low TCR down to ±5PPM/℃.
    · High precision.

    · Excellent stability.

    Applications

    · Precision Equipment
    · Measurement Equipment

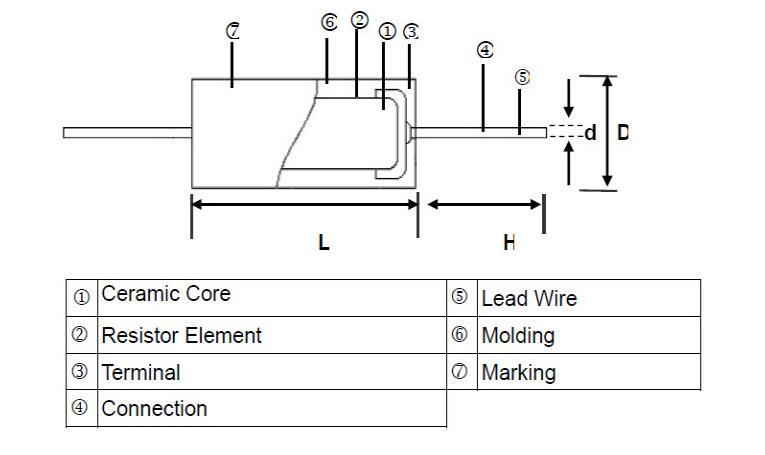

    Construction

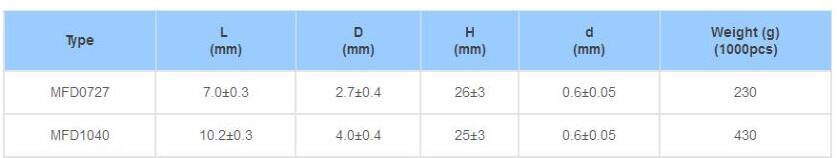

    Dimensions (Unit: mm)

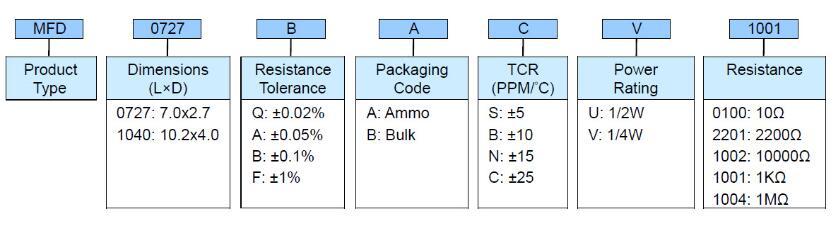

    Part Numbering

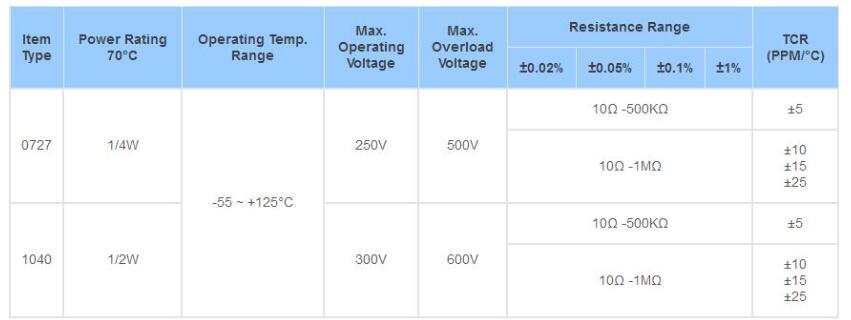

    Standard Electrical Specifications

    Operating Voltage=√(P*R) or Max. operating voltage listed above, whichever is lower.
    Overload Voltage=2.5*√(P*R) or Max. overload voltage listed above, whichever is lower.

    Product parameters

产品详情

High precision metal film leaded resistor , very tight tolerance and extremely low TCR for precision high level equipment and measurement etc.

Features

· Very tight tolerance down to ±0.02%.
· Extremely low TCR down to ±5PPM/℃.
· High precision.

· Excellent stability.

Applications

· Precision Equipment
· Measurement Equipment

Construction

Dimensions (Unit: mm)

Part Numbering

Standard Electrical Specifications

Operating Voltage=√(P*R) or Max. operating voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. overload voltage listed above, whichever is lower.

Product parameters
