Metal Foil Low Ohm Resistor (CSM Series)

+
  • undefined

Metal Foil Low Ohm Resistor (CSM Series)

Dimensions(Unit:mm) Features· SMDTypedesignedforautomaticinsertion.· Highpowerratinginsmallsize.· Lowresistanceresistorforcurrentdetection.· Metalfoilconstructionensureshighreliabilityand  performance

category:

METAL LOW OHM RESISTOR

Model :

VIKING46

  • Product description
  • Product parameters
  • Product parameters
    • Commodity name: Metal Foil Low Ohm Resistor (CSM Series)
    • Commodity ID: VIKING46

    Dimensions(Unit:mm) Features· SMDTypedesignedforautomaticinsertion.· Highpowerratinginsmallsize.· Lowresistanceresistorforcurrentdetection.· Metalfoilconstructionensureshighreliabilityand  performance

    Metal material for low ohm resistor for sensing large current , withstand high temperature. Low TCR for stable resistance drift through high temp.

    Features

    · SMD Type designed for automatic insertion.
    · High power rating in small size.
    · Low resistance resistor for current detection.
    · Metal foil construction ensures high reliability and    performance with very low and stable TCR.
    · Designed for current sense circuits in power

       electronic systems.

    · Pb-Free to meet RoHS requirements.

    Applications

    · Power Management Applications
    · witching Power Supply
    · Over Current Protection in Audio Applications
    · Voltage Regulation Module (VRM)
    · DC-DC Converter, Battery Pack, Charger, Adaptor

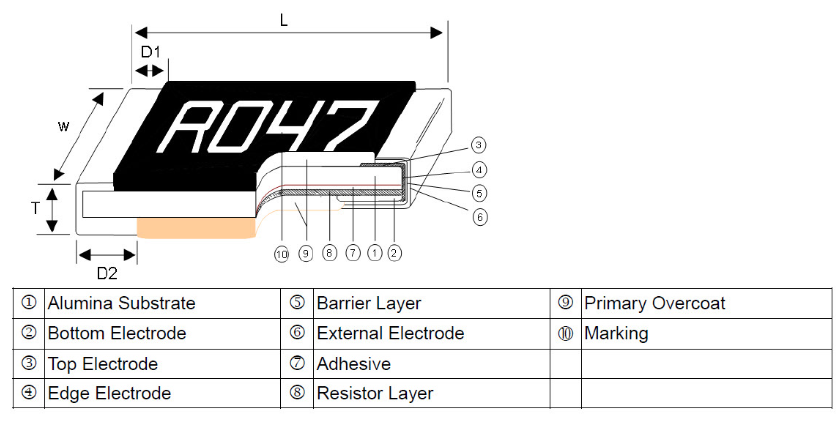

    Construction

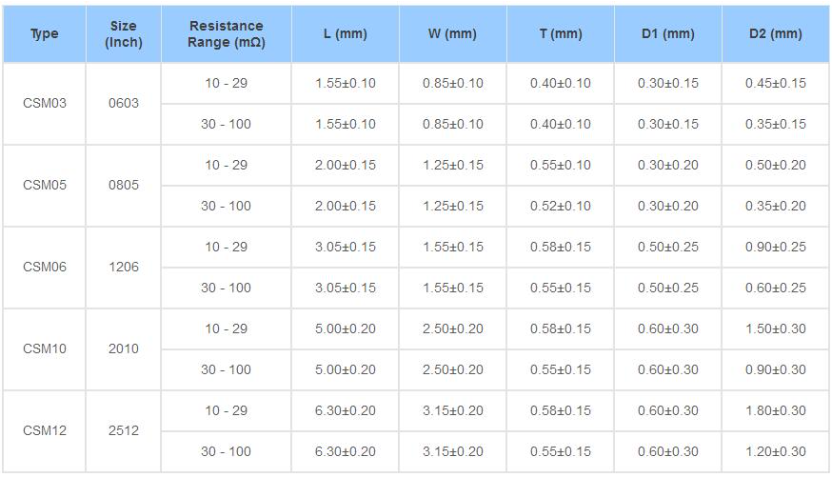

    Dimensions (Unit: mm)

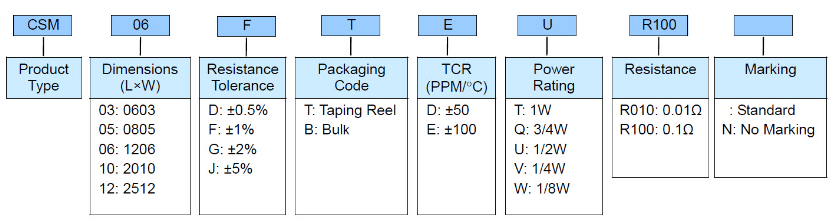

    Part Numbering

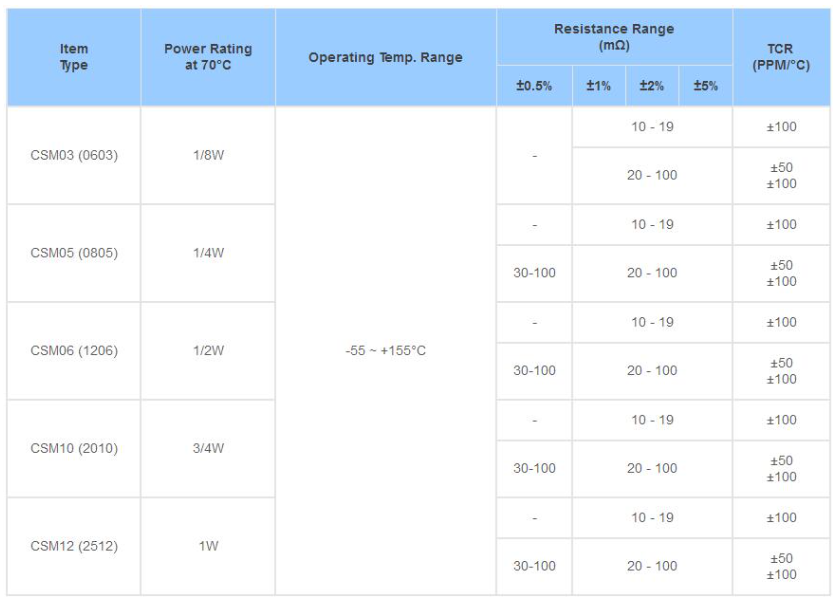

    Standard Electrical Specifications

    Operating Voltage=√(P*R) ; Overload Voltage=2.5*√(P*R) ; Operating Current=√(P/R)
    ☑ Viking is capable of manufacturing the optional spec based on customer's requirement.



产品详情

Metal material for low ohm resistor for sensing large current , withstand high temperature. Low TCR for stable resistance drift through high temp.

Features

· SMD Type designed for automatic insertion.
· High power rating in small size.
· Low resistance resistor for current detection.
· Metal foil construction ensures high reliability and    performance with very low and stable TCR.
· Designed for current sense circuits in power

   electronic systems.

· Pb-Free to meet RoHS requirements.

Applications

· Power Management Applications
· witching Power Supply
· Over Current Protection in Audio Applications
· Voltage Regulation Module (VRM)
· DC-DC Converter, Battery Pack, Charger, Adaptor

Construction

Dimensions (Unit: mm)

Part Numbering

Standard Electrical Specifications

Operating Voltage=√(P*R) ; Overload Voltage=2.5*√(P*R) ; Operating Current=√(P/R)
☑ Viking is capable of manufacturing the optional spec based on customer's requirement.
